แปลง PWM เป็น 0-10V

แปลง PWM เป็น 0-10V

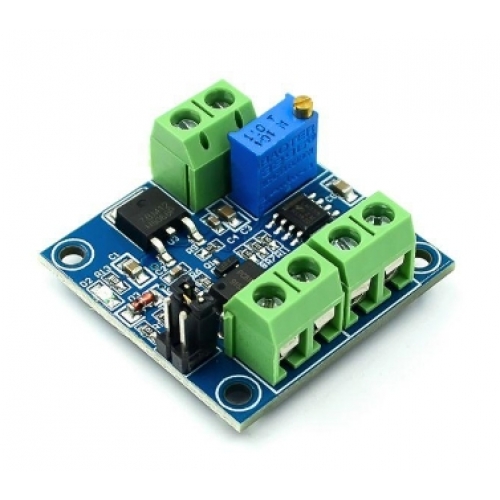

เป็นโมดูลสำหรับแปลง PWM 0-100% เป็น 0-10V

Conversion Range: 0%-100% PWM to 0-10V

Using single chip embedded technology;

Peak 4.5v to 10V level, jumper inserted at 5V. This level of signal mainly for conventional industrial control card (such as MACH3 board Card) 5V CPU interface;

Easy to operate, can be fine-tuned by potentiometer;

Select the PWM signal input level range through short cap;

Module is small, easy to carry and use;

Module operating voltage: DC12V-30V (power requirements: greater than 100mA);

PWM signal reception frequency range: 1KHz-3KHz;

Peak 12 to 24V level, jumper inserted in the 24V. This level of signal is mainly aimed at the conventional PLC interface;

Conversion range: 0% -100% PWM to 0-10v voltage;

Allowable error: 5%;

Pin Definition:

VCC: working power 12-30V

GND: ground

PWM: input PWM signal positive

GND: input voltage ground

VOUT: Output voltage: 0-10V

GND: output ground
