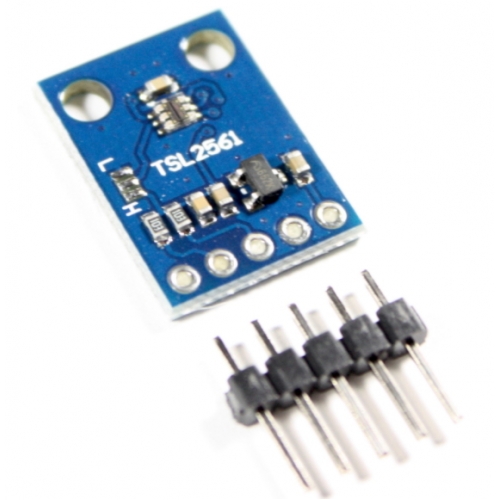

โมดูล วัดความเข้มแสง Lux Sensor TSL2561

โมดูล วัดความเข้มแสง Lux Sensor TSL2561

The TSL2561 Luminosity Sensor Breakout is a sophisticated light sensor which has a flat response across most of the visible spectrum. Unlike simpler sensors, the TSL2561 measures both infrared and visible light to better approximate the response of the human eye. And because the TSL2561 is an integrating sensor (it soaks up light for a predetermined amount of time), it is capable of measuring both small and large amounts of light by changing the integration time.

Specifications:

• Supply Voltage: 2.7 - 3.6V DC
• Interface voltage range: 2.1 V to 3.6 V
• Interface: I2C (up to 400kHz)

Operational Range:

• l Temperature: -40 to +85°C
• l Humidity: 0-100%
• l Illuminance:  0.1-40,000 Lux

Resolution:

• l Illuminance:  0.1 Lux

I2C address:

• ADDR SEL LOW :  0x29
• ADDR SEL FLOAT:  0x39
• ADDR SEL HIGH:  0x49
