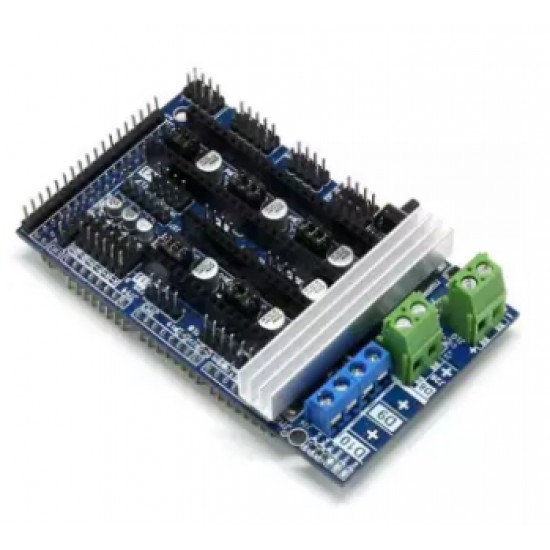

Board Ramp 1.6 สำหรับ 3d Printer

Board Ramp 1.6 For 3d Printer

ใช้ร่วมกับ Arduino Mega 2560

Product Features
1.It can be connected to LCD and other parts.
2.There are heater and fan MOSFET outputs and 3 thermistor interfaces
3.5A additional security and component protection fusion
4.Heated bed controls additional 11A fuses
5.Applied to 5 Pololu stepper drive board
6.Design of Pololu plate pin socket can be easily replaced or removed for future design
7.I2C and SPI pins are available for future expansion
8.Servo connectors are used for connecting limit stops, motors and light-emitting diodes.
These connectors are gold-plated and have a rated current of 3A, which is very compact.
9.The LED will light when the heater has output
