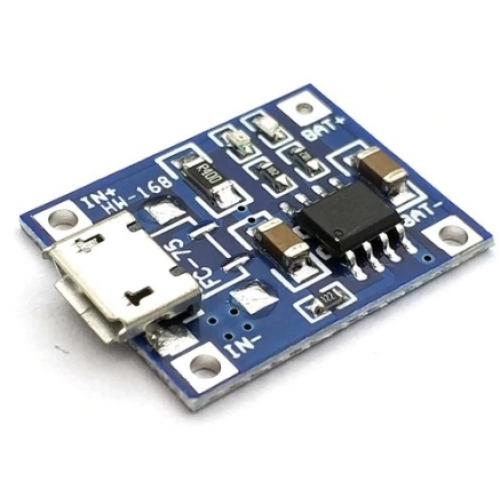

โมดูลชาร์ท แบตเตอรี่ FC-75 Micro usb 18650 TP4056 1A 3.7-4.2V

โมดูลชาร์ท แบตเตอรี่

FC-75 Micro usb 18650 battery charger

หัวเสียบเป็นแบบ Micro usb

1. Feature

1). High quality charging Chip TP4056, simple circuit, good protective value, high charging precision.

2). Complete mechanical automation processing, High reliability.

3). Automaticlly adjust the output current from 100 to 1000ma by simply changing the fixed resistor on the circuit board.

2. Application

It can be used to charge for one pcs of lithium battery or serval parallel lithium batteries.

3. Parameter

Input Voltage: 4.5~5.5V

Full charging voltage: 4.2V

Max output current:1A

Power Indicator: Red stands for charging, Green stands for fullly charged.

Input interface: Micro interface

Item Size: 25mm*19mm.
