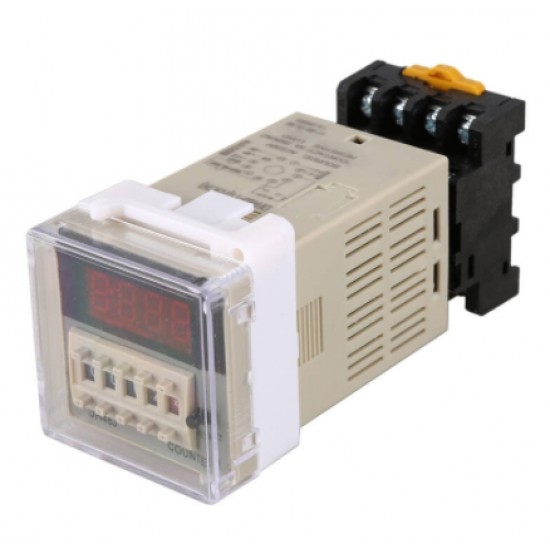

Counter (เคาน์เตอร์) DH48J-11A 220VAC

Counter (เคาน์เตอร์) DH48J-11A  220VAC

รายละเอียด

Features: 1. LED HD display. High brightness, high definition LED digital tube

2. The contact is highly conductive. Large-capacity contact, bright and rust-free, strong conductive

3. Large capacity relay. High precision. Highly sensitive, fully automatic and flexible control, accurate timing

4. High power transformer. New transformer, thick and full, stable operation

5. Using chip component high-precision electric welding process, the product has a longer service life and durability.

specification:

Color: beige gray + black

Material: ABS

Model : DH48J-11A

Rated frequency: 50/60HZ

Power consumption: less than equal 2W

Control output: 5A220VAC

Supply voltage: AC220V

Electrical life: greater than equal 1 million times

Altitude: less than equal 2000m

Maximum counting speed: 30 times / sec

Minimum count pulse width: 15ms

Counting signal output: mechanical switch, (photovoltaic) transistor, voltage signal
