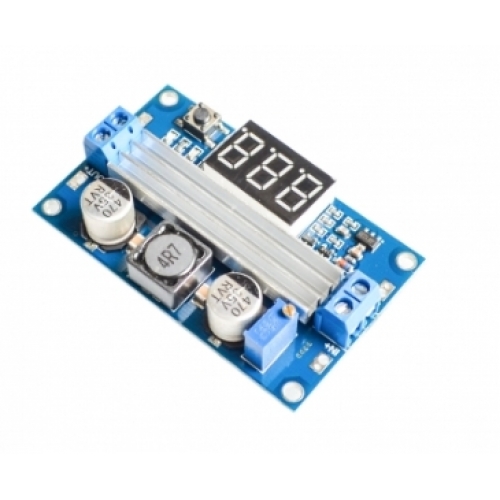

Step Up Module LTC1817 4-40V 6A

Step Up Module LTC1817 4-40V 6A

มี LED แสดงถานะของแรงดัน

Performance parameters
1.input voltage range:3~35VDC(Note: the input voltage is less than 4V, voltmeter failure)
2.input current:9A (max)
3.output voltage range:3.5~35VDC(please to ensure that output voltage above on input voltage)
4.output current: 6A (max)
5.output power: 75W (when the input and output voltages greater than 20V up to 128W)
6.conversion efficiency: 96.4% (max)
7.voltmeter range: 4 to 40V, error±0.1V
8.short circuit protection: yes(limit current 14A).(Note: connected to high-power load, just switched on the impact of current very general meeting current limiting self-locking protection, it is recommended to be switched onfirstly, and then access the load).
9.input reversepolarityprotection: None (if required, high current diode in series with the input).
10.L x W x H = 67 * 43 * 12mm
