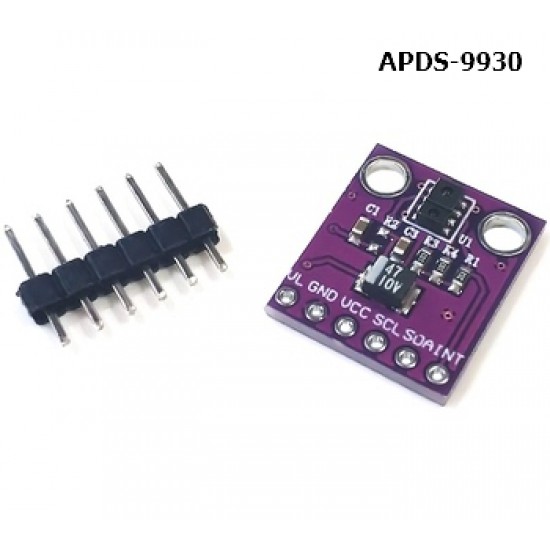

APDS-9930 Proximity Detector in an Optical Module

ตรวจจับวัตถุด้วยแสงโดยไม่สัมผัส

Features:

ALS, IR LED and Proximity Detector in an Optical Module.

Ambient Light Sensing (ALS), approximates Human Eye Response.

Programmable Interrupt Function with Upper and Lower Threshold.

Up to 16-Bit Resolution.

High Sensitivity Operates Behind Darkened Glass.

Low Lux Performance at 0.01 lux.

Proximity Detection

Fully Calibrated to 100 mm Detection.

Integrated IR LED and Synchronous LED Driver

Programmable Wait Timer

Wait State Power: 90μA (Typical)

Programmable from 2.7 ms to > 8 sec

I2C Interface Compatible, Up to 400 kHz (I2C Fast-Mode)

Dedicated Interrupt Pin

Sleep Mode Power-2.2μA (Typical)

Specification:

Working voltage: DC 3.3-3.8V

Output current: 0-20mA

Temperature: -40℃-85℃

Product size: approx. 20*15*3mm/0.78*0.59*0.11''
