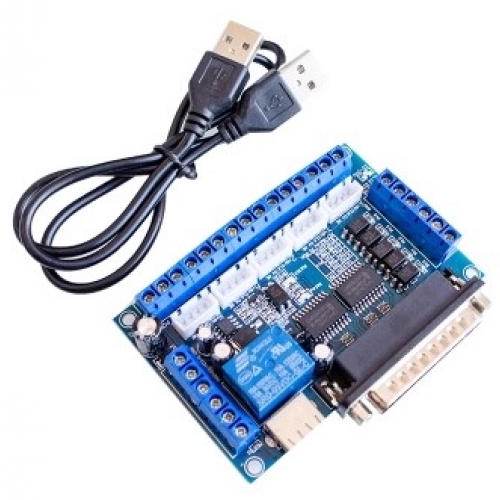

ขาย 5 Axis CNC Breakout Board For MACH3 ราคา 190.00 บาท ในไทย

ขาย 5 Axis CNC Breakout Board For MACH3 ราคา 190.00 บาท ในไทย

รายละเอียด

  • Material  Electrical components
  • Color  See pictures
  • 1, fully support of MACH3 and other computer software support for parallel port control.
  • 2, USB power supply and peripherals powered phase separation to protect computer security.
  • 3, peripheral wide voltage input,12-24V, and anti-reverse function.
  • 4, all of the input signal, all the light lotus isolated, which can be accessed emergency stop on the knife, the limit to protect computer security.
  • 5, all the way to the relay output port, control spindle switch. Output port P17 mouth.
  • 6, all the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
  • 7, open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
  • 8, P1 as PWM outputs can be controlled with optocoupler input spindle governor.
  • 9, can be accessed by a common cathode or common anode input level to 5V drive.
  • Size  See the pictue
  • No retail packagg
  • Quantity  1Pc
ขาย 5 Axis CNC Breakout Board For MACH3 ราคา 190.00 บาท ในไทย
190.00 บาท
  • จำนวนสินค้า: 3
  • รุ่น: CNC Board MACH3
  • น้ำหนัก: 83.00g
  • SKU: 8109
