ขาย BMS 3S 11.1V 25A 18650 With Balance ราคา 70.00 บาท ในไทย

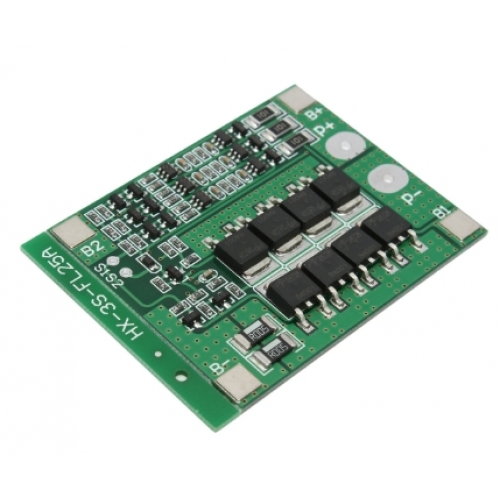

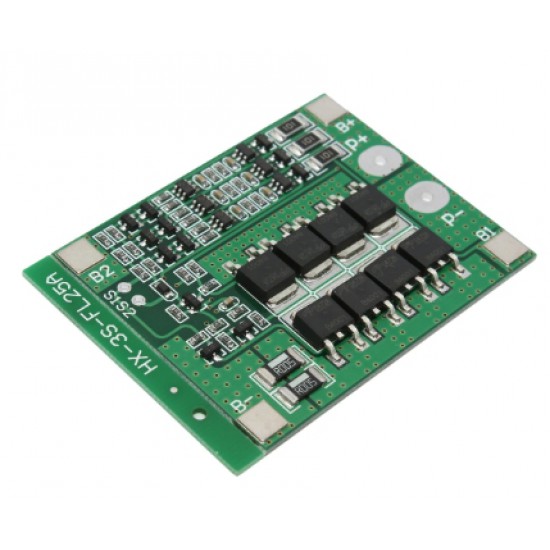

BMS 3S 11.1V 25A 18650 With Balance

Description:

Model: HX-3S-FL25A-A

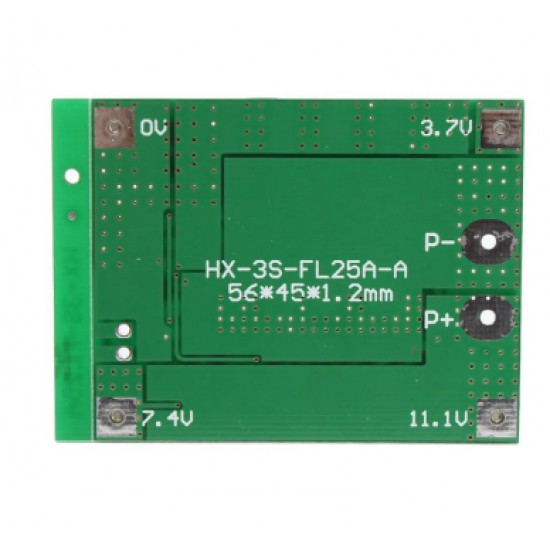

Size: about 56mm*45mm*1.2mm

Over voltage range: 4.25~4.35V ± 0.05V

Over discharge voltage range: 2.3~3.0V ± 0.05V

Maximum operating current: 0~25A

Maximum transient current: 34~40A

Quiescent current: less than 30uA

Internal resistance: less than 100Mohm

Working temperature: -40℃ ~ +50℃

Storage condition: -40℃ ~ +80℃

Effective life: more than30000h

Short circuit protection: Yes, delayed self recovery

Note:

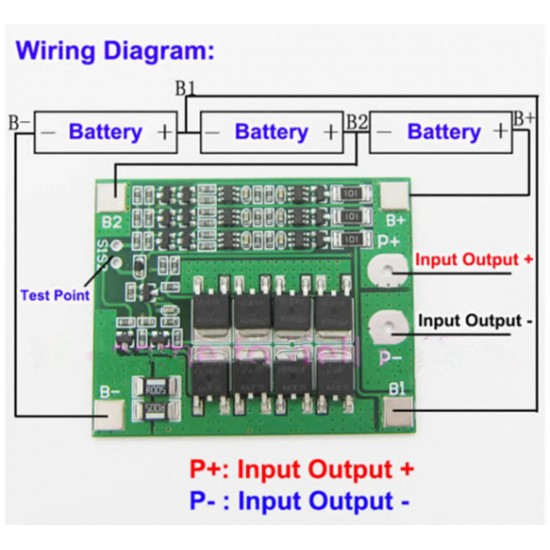

1. Strictly according to the diagram wiring: 0V(B-)3.7V(B1)7.4V(B2)11.1V(B+),Do not deliberately short circuit.

2. After the wire is connected, needs to charge first, then have output.

3. When the battery is connected in series with 3 groups ,please ensure that the voltage of each battery is the same. If not the same, please fill in

    each set of batteries and then use.

4. Do not mix the good battery and the battery.

5. It will be better the capacity of the battery internal resistance is closer.
