ขาย ESP8266 WiFi Motor driven expansion board L293D บอร์ดขับมอเตอร์ ราคา 80.00 บาท ในไทย

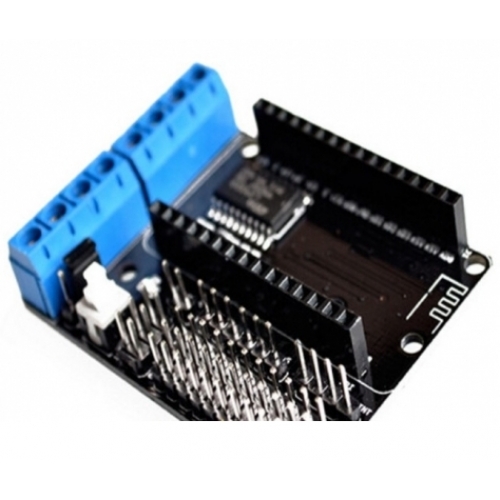

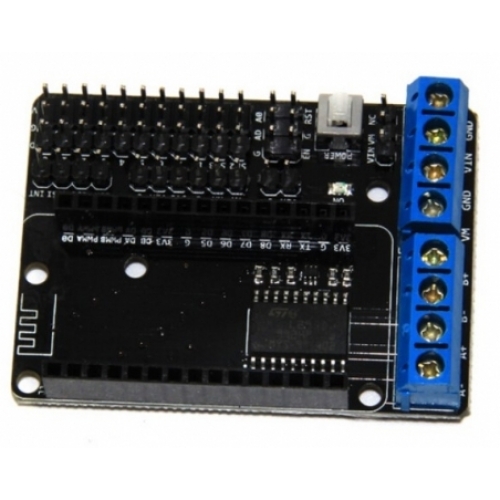

ESP8266 WiFi Motor driven expansion board L293D

ใช้ร่วมกับ esp8266 เพื่อควบคุมมอเตอร์

Description:
Based on ESP- 12E development of the first motor driven expansion board.
Points:
ESP12 DEV KIT development board extension module;
Elicit ESP12 DEV KIT: all functions pin SPI, UART, GPIO, AI and 3.3 V power supply interface;
Extended two road motor drive, can direct drive two road motor;
The onboard power switch;
L293D
Range of motor power supply: 4.5V ~ 36V.
Scope of supply: 4.5V ~ 9V.
Motor power supply, control of power separation;In the experiments, through short circuit can merge, the VIN and VM short, at the same time to the motor and control panel power supply.
