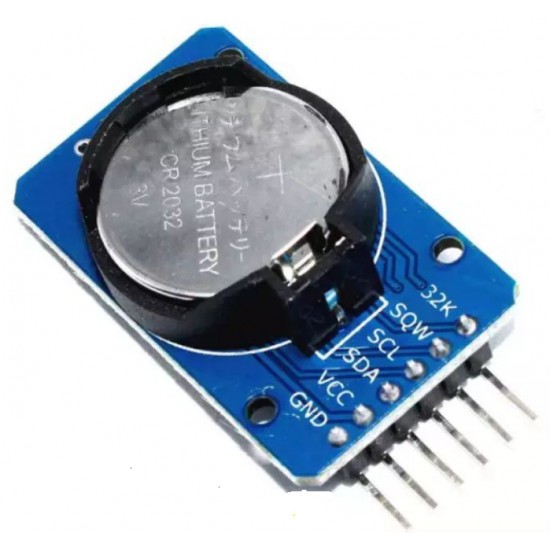

ขาย Real Time Clock Memory Module DS3231 AT24C32 ราคา 75.00 บาท ในไทย

โมดูลเวลา แสดง เวลาและวันที่ พร้อม Battery

DS3231 AT24C32

Real Time Clock Memory Module

Module parameters:

1. Size: 38mm (length) * 22mm (W) * 14mm (height)

2. Weight: 8g

3. Operating voltage :3.3 - 5 .5 V

4. Clock chip: high-precision clock chip DS3231

5. Clock Accuracy :0-40 range, the accuracy 2ppm, the error was about 1 minute

6. Calendar alarm clock with two

7. Programmable square-wave output

8. Real time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation

9. Chip temperature sensor comes with an accuracy of ± 3

10. Memory chips: AT24C32 (storage capacity 32K)

11. IIC bus interface, the maximum transmission speed of 400KHz (working voltage of 5V)

12. Can be cascaded with other IIC device, 24C32 addresses can be shorted A0/A1/A2 modify default address is 0x57

13. With rechargeable battery LIR2032, to ensure the system after power failure, the clock move any natural normal

14. Packing: single anti-static packaging

Wiring instructions ( for Arduino uno r3 for example):

SCL → A5

SDA → A4

VCC → 5V

GND → GND
