ขาย LM393 ราคา 10.00 บาท ในไทย

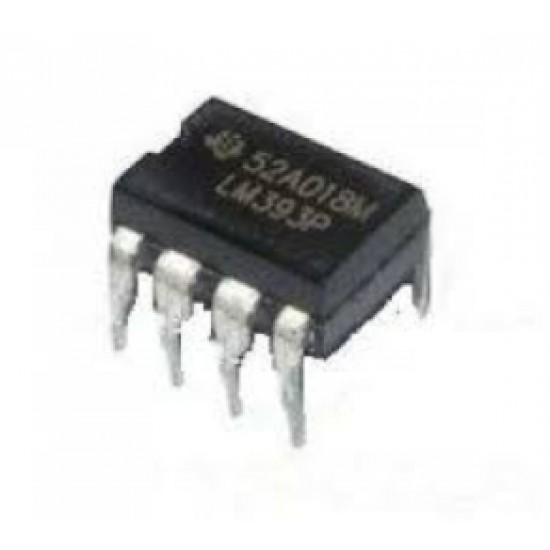

LM393

 voltage comparators

Single Supply or Dual Supplies

Wide Range of Supply Voltage − Max Rating . . . 2 V to 36 V − Tested to 30 V . . . Non-V Devices − Tested to 32 V ...V-Suffix Devices

Low Supply-Current Drain Independent of Supply Voltage . . . 0.4 mA Typ Per Comparator

Low Input Bias Current . . . 25 nA Typ

Low Input Offset Current . . . 3 nA Typ (LM193)

Low Input Offset Voltage . . . 2 mV Typ
Common-Mode Input Voltage Range Includes Ground

Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage . . . ±36 V

Low Output Saturation Voltage
Output Compatible With TTL, MOS, and CMOS
